Stabila LAR 160 Rotating Laser Level Kit – 7-Piece Set with Tripod & Receiver

£800.00 GBP

The Stabila LAR 160 is a rugged, self-levelling rotating laser supplied as a complete 7-piece kit for site levelling, setting out and level transfer. It levels itself in under 20 seconds with an accuracy of ±0.1 mm/m, and with the supplied receiver covers a working diameter of up to 600 m. That makes it well suited to checking ground levels across investigation sites, establishing reference levels for trial pits and excavations, and setting out on construction projects. IP65 protection and a shock-absorbing soft-grip housing keep it working in wet, dusty site conditions.

Key Features

Four functions: horizontal rotation, vertical rotation, plumb line and vertical 90°
Automatic self-levelling in under 20 seconds
±0.1 mm/m accuracy
Up to Ø600 m working area with the supplied receiver
IP65 dust and water protection
Shock-absorbing soft-grip housing protects the optics
5/8" tripod threads for both horizontal and vertical mounting

Typical Applications

Checking ground levels and falls across investigation and development sites
Establishing reference levels for trial pits and excavations
Setting out foundations, slabs and drainage runs
General levelling and alignment on construction sites

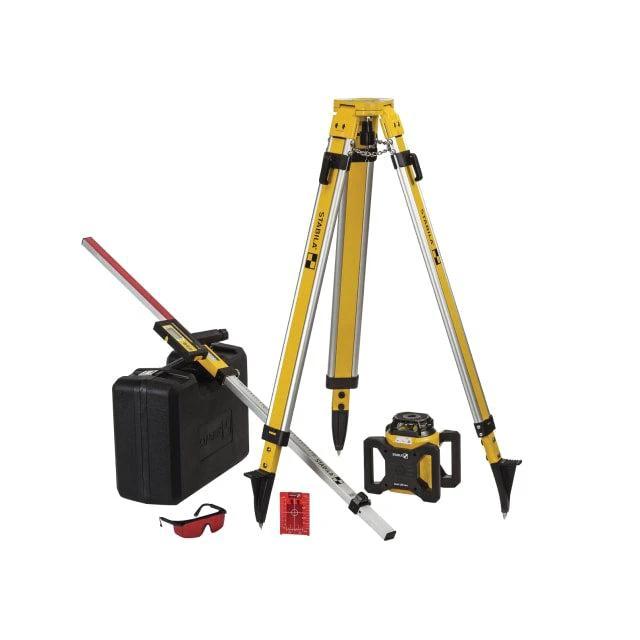

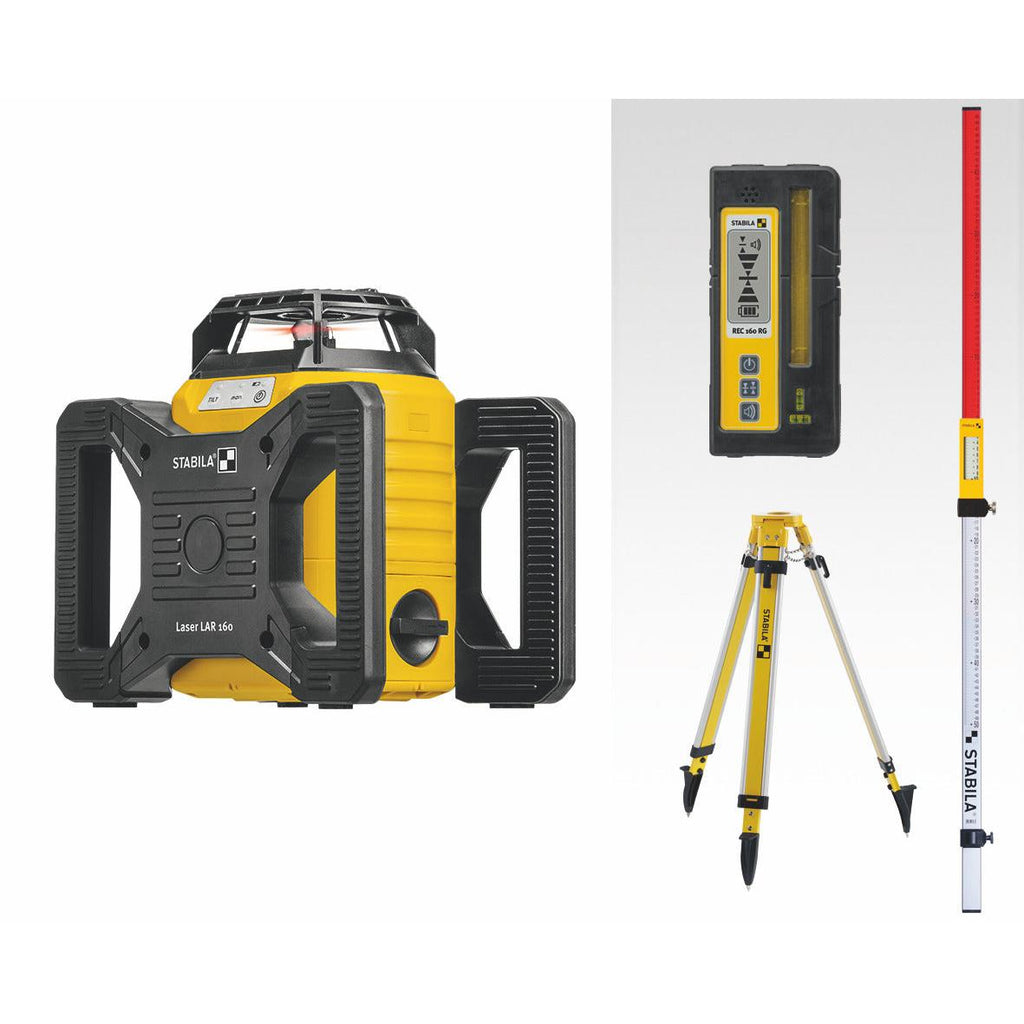

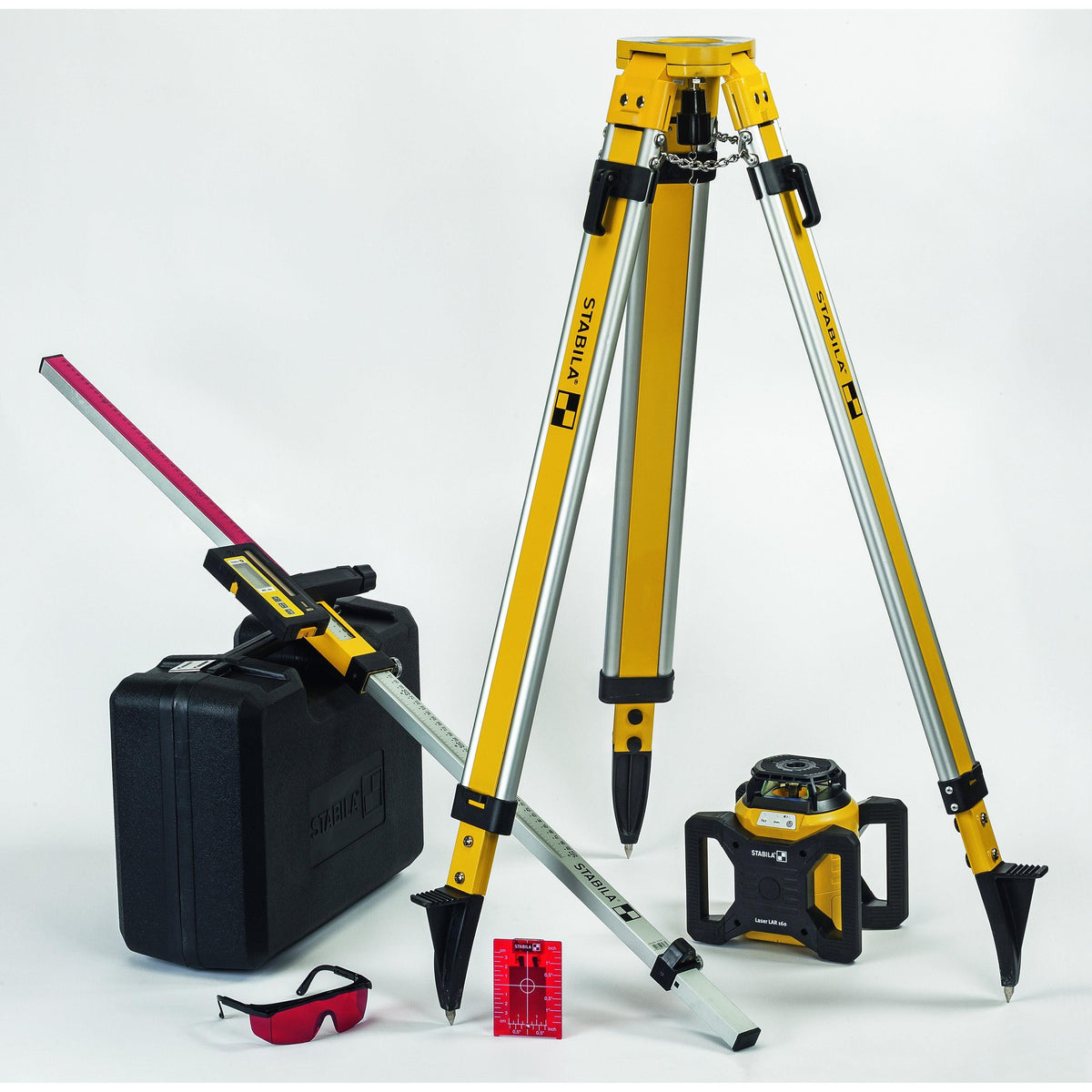

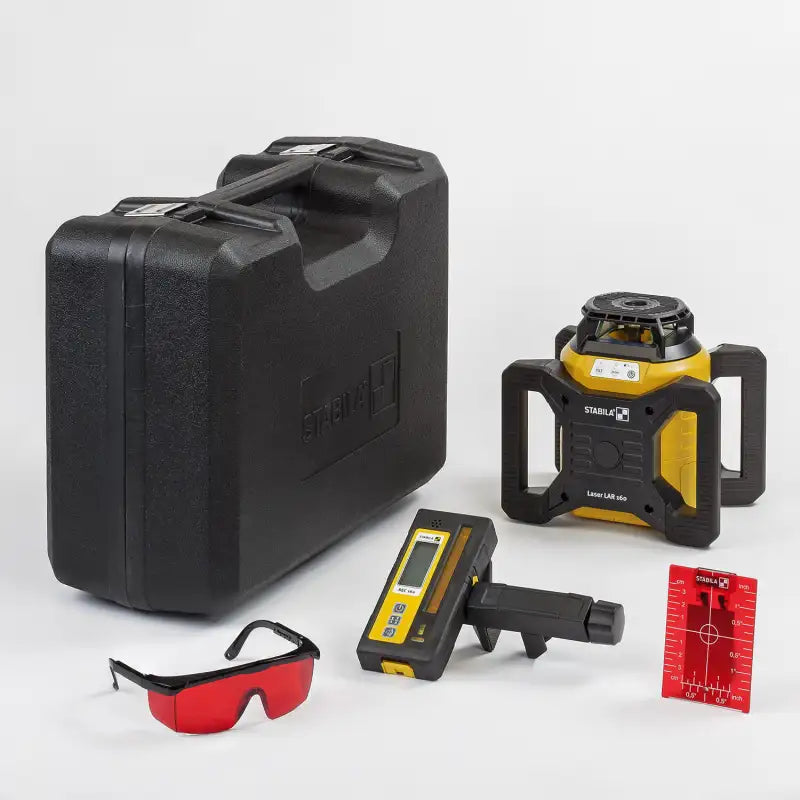

Kit Contents

LAR 160 rotating laser
BST-S construction tripod
NL levelling rod
REC 160 RG receiver
Laser goggles and target plate
2 x D and 2 x AA batteries
Carrying case

Specifications

Laser type: red, 635 nm
Laser class: 2
Accuracy: ±0.1 mm/m
Working area with receiver: Ø600 m
Self-levelling time: under 20 seconds
IP rating: IP65

Availability and Dispatch

Availability and lead times vary by product. Some items are held in stock, while others are ordered from our suppliers. Please contact us through the contact option available on this sales channel before ordering if you require confirmation of availability or delivery times.
