Stabila LAR 350 Rotating Laser Level Kit – Dual Slope, 9-Piece Set with Remote & Receiver

£1,361.00 GBP £1,484.40 GBP

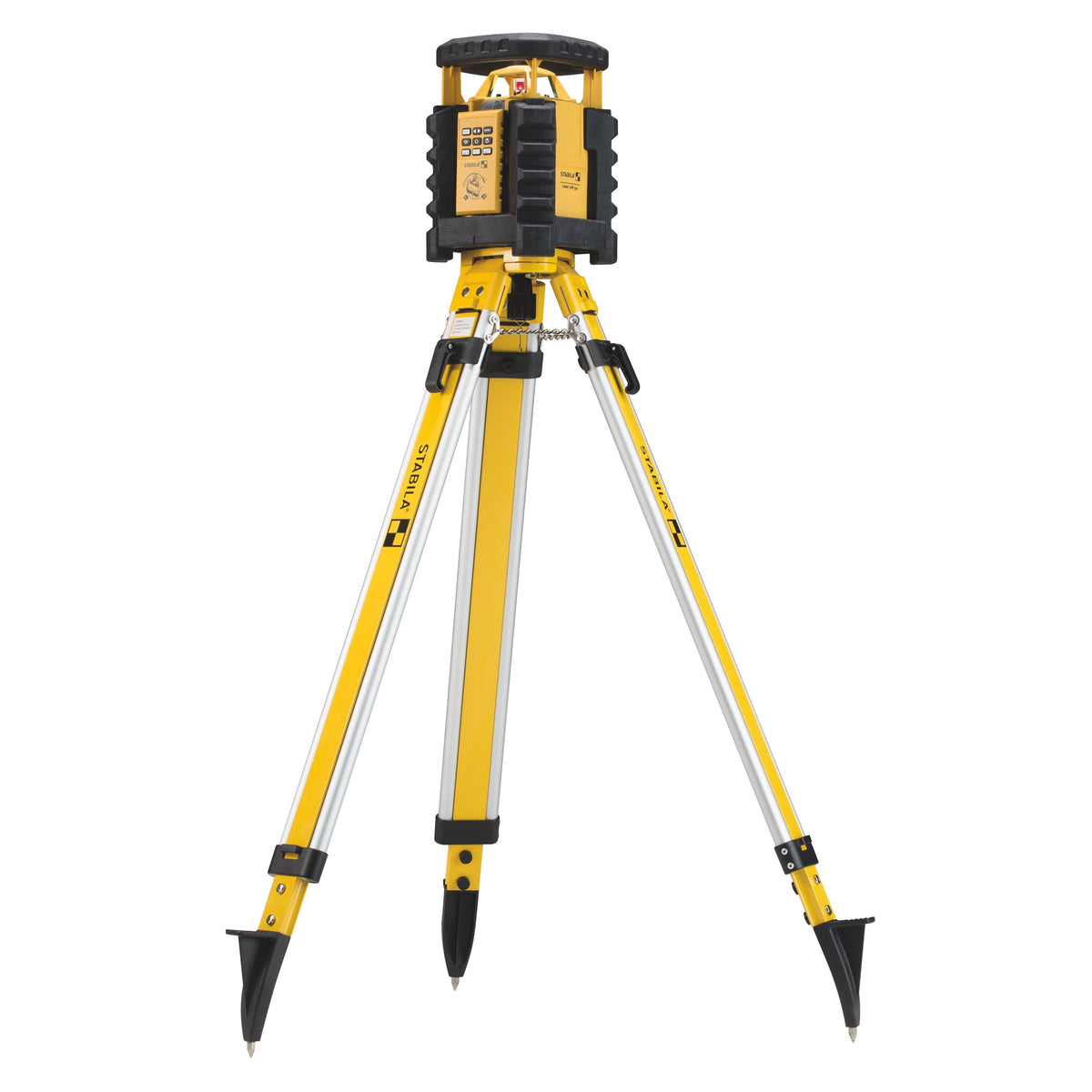

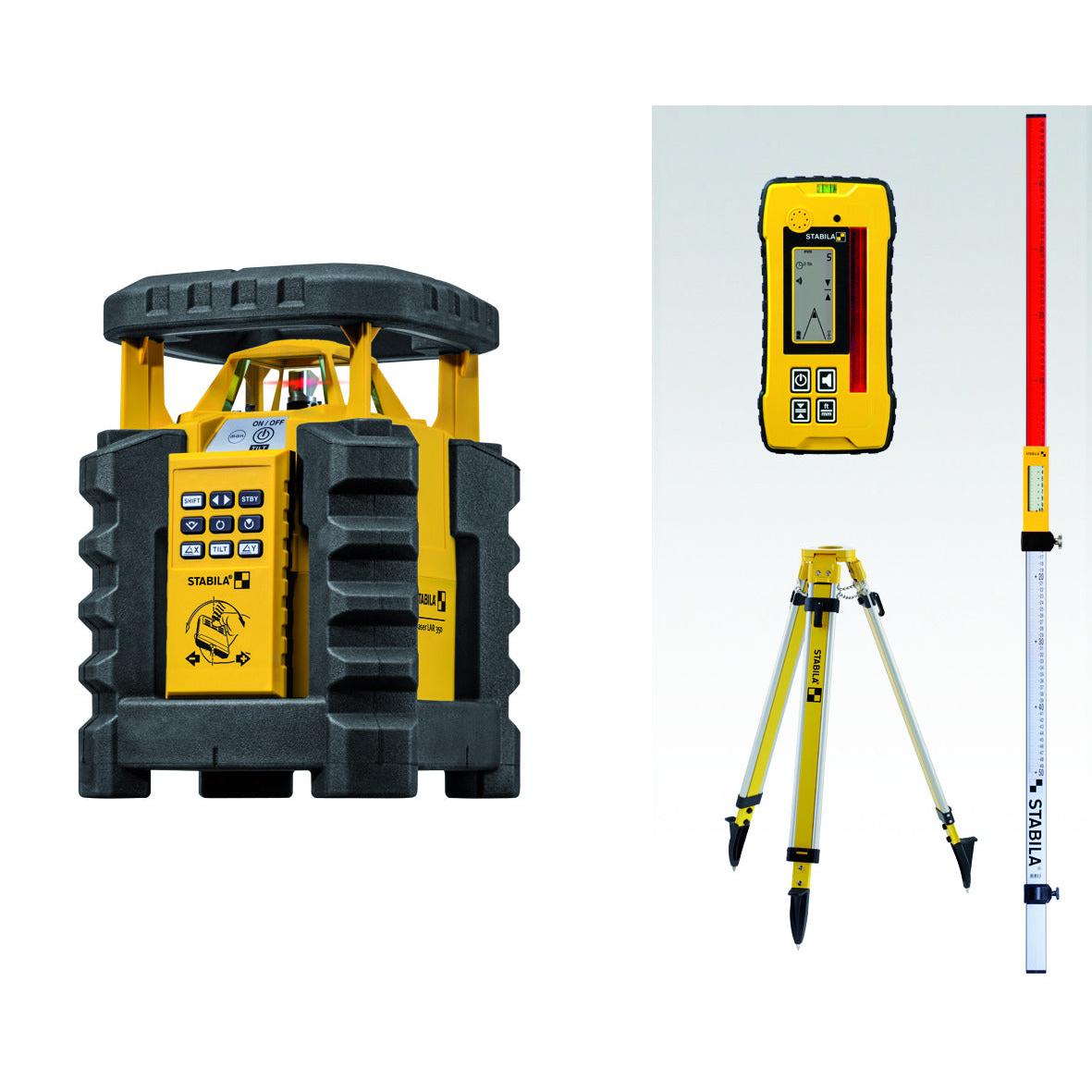

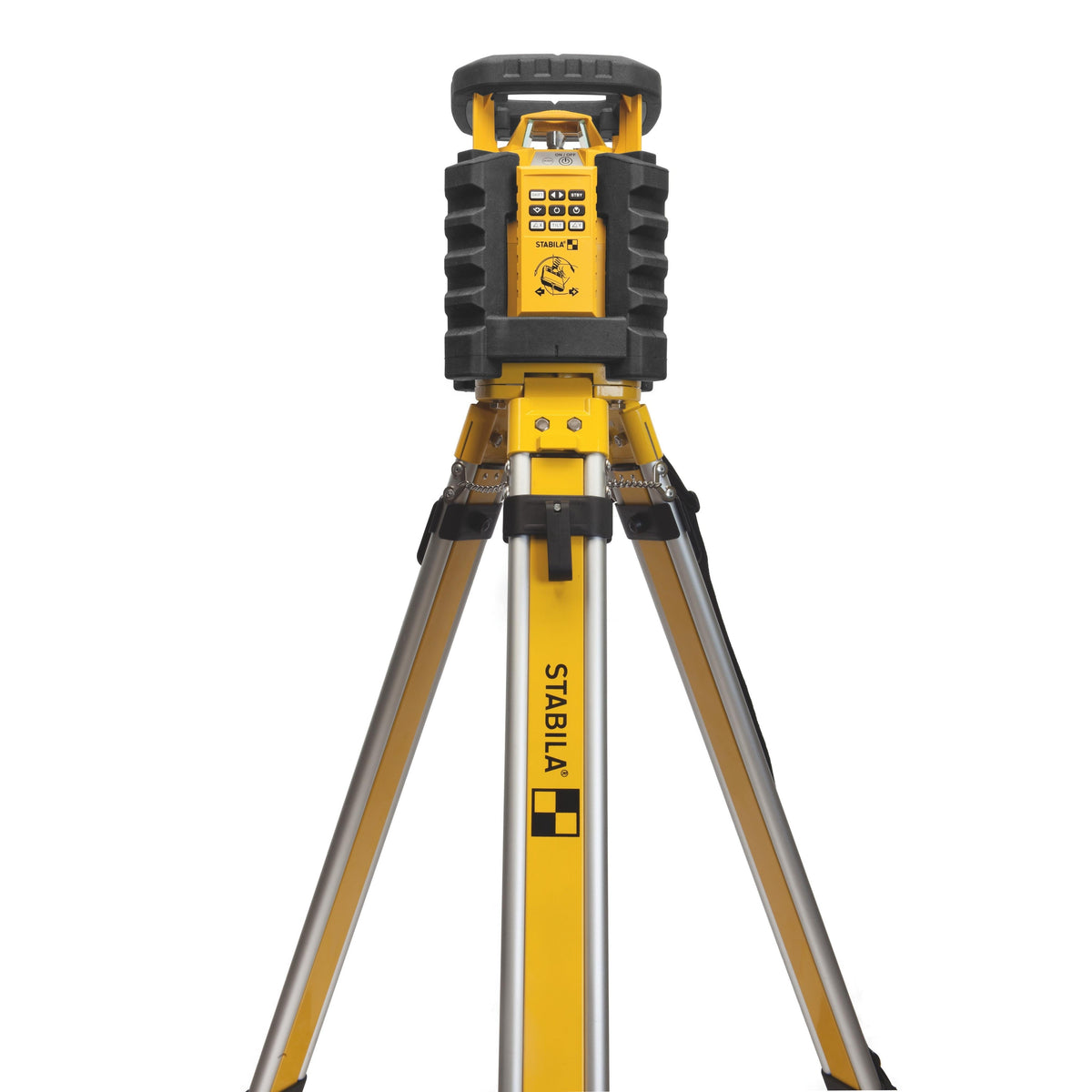

The Stabila LAR 350 is a fully automatic, motor-driven rotating laser supplied as a complete 9-piece kit with remote control, receiver, tripod and levelling rod. With an 800 m range, ±0.10 mm/m levelling accuracy and a dual slope function for controlled falls on two axes, it handles site levelling, earthworks and drainage set-out across large investigation and development sites. IP65 protection and Stabila's PROTECTOR system, rated for drops of up to 1.8 m, keep it working in demanding site conditions.

Key Features

Dual slope function for controlled inclination up to 5° on two axes
800 m working range with ±0.10 mm/m levelling accuracy
Section mode limits the beam to a defined working zone

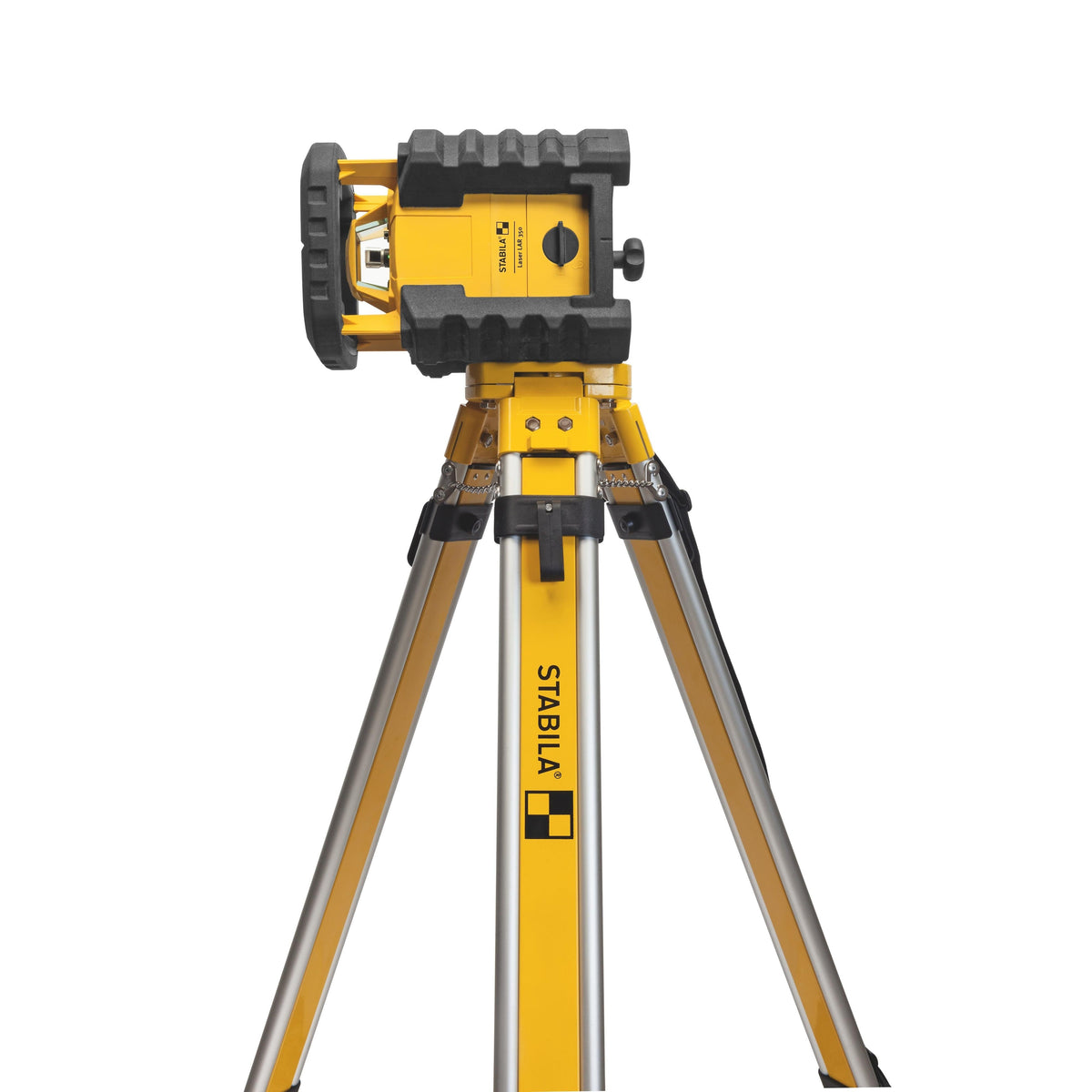

Manual alignment with pivot axis for fine positioning in vertical mode
LED assist system shows status, alerts and which axis is tilted
REC300 receiver with front and rear displays and digital readout of deviation from reference
Acoustic high/low guidance with adjustable volume for noisy sites
IP65 body with PROTECTOR drop protection up to 1.8 m

Typical Applications

Site levelling and checking ground levels across large sites
Setting out falls for drainage, access roads and hardstandings
Establishing reference levels for trial pits, excavations and earthworks
Foundation and slab set-out on construction projects

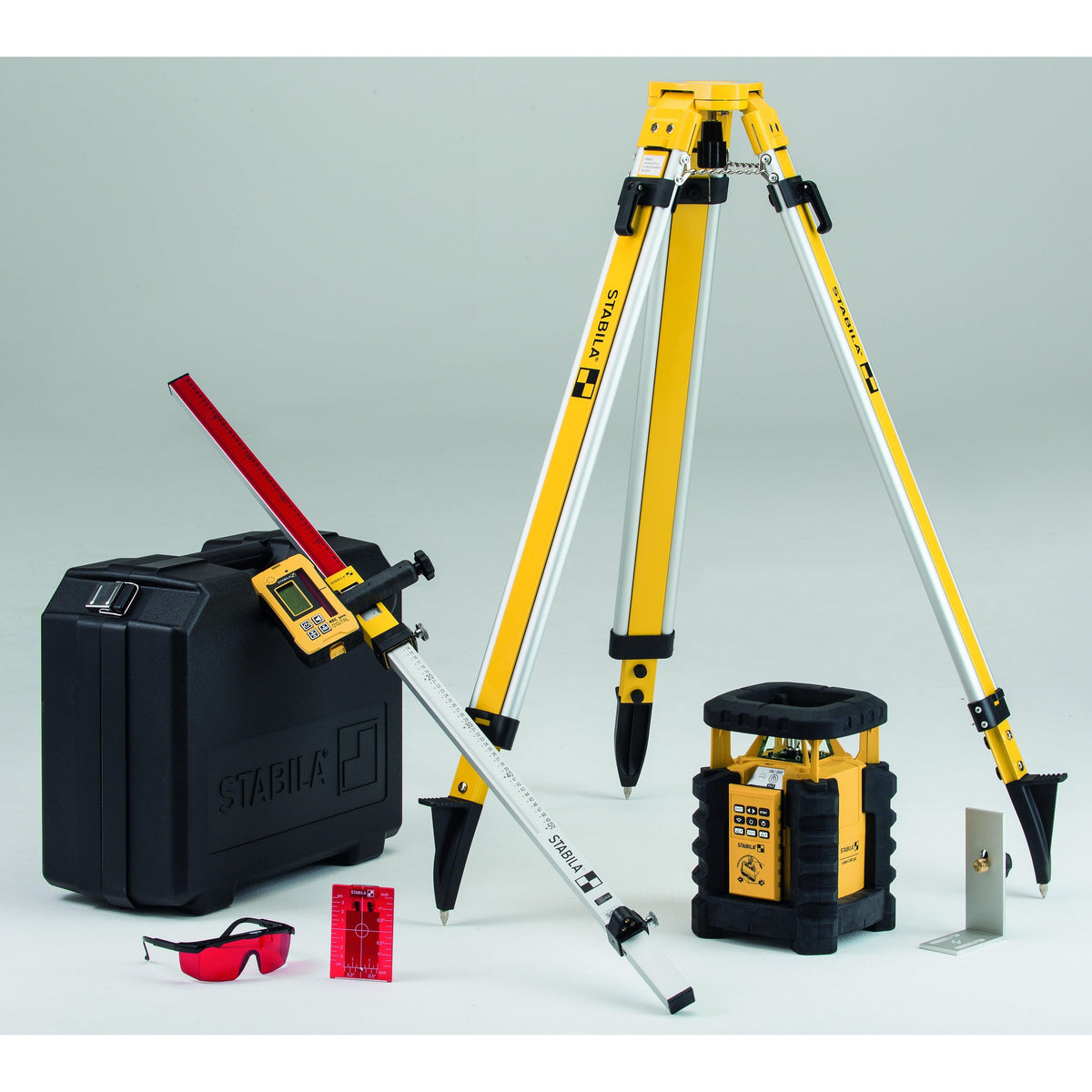

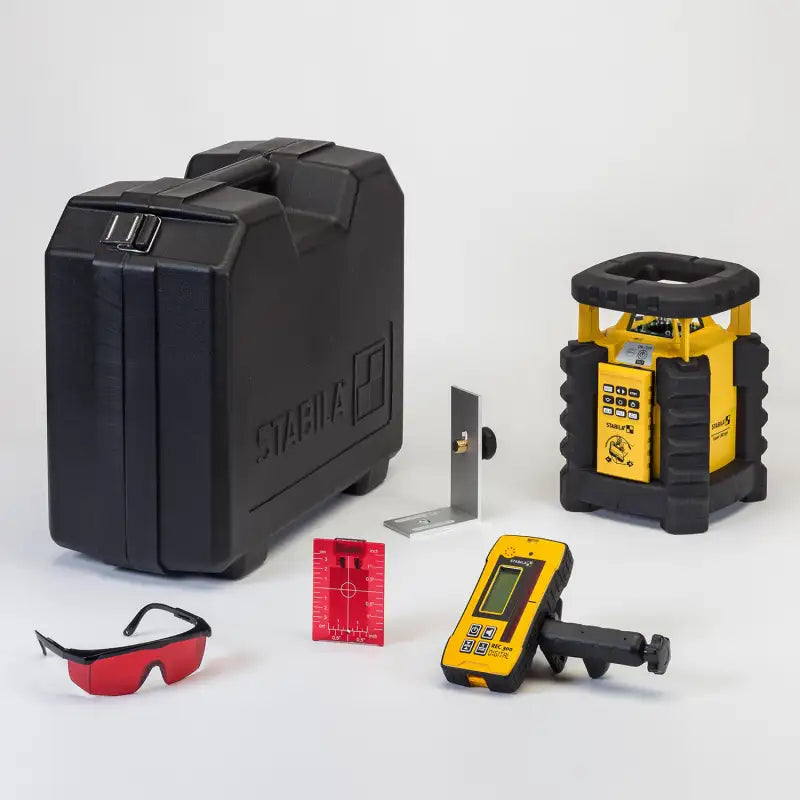

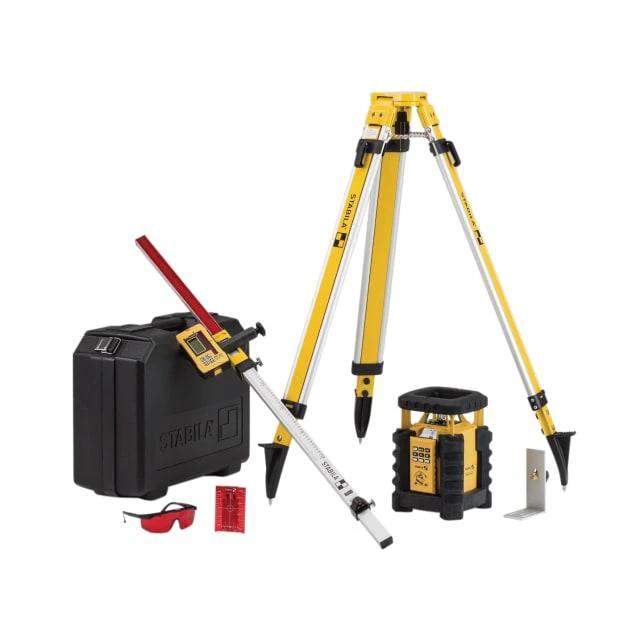

Kit Contents

LAR 350 rotating laser
REC300 receiver
RC-LAR 350 remote control
BST-S construction tripod
NL levelling rod
90° angle rail
Laser goggles and target plate
2 x D and 4 x AA batteries
Carrying case

Specifications

Levelling accuracy: ±0.10 mm/m
Range: 800 m
Self-levelling range: ±5°
Laser class: 2
Operating life: 80 hours
Power: 2 x 1.5V D cell batteries (supplied)
IP rating: IP65
Tripod connection: 5/8"
